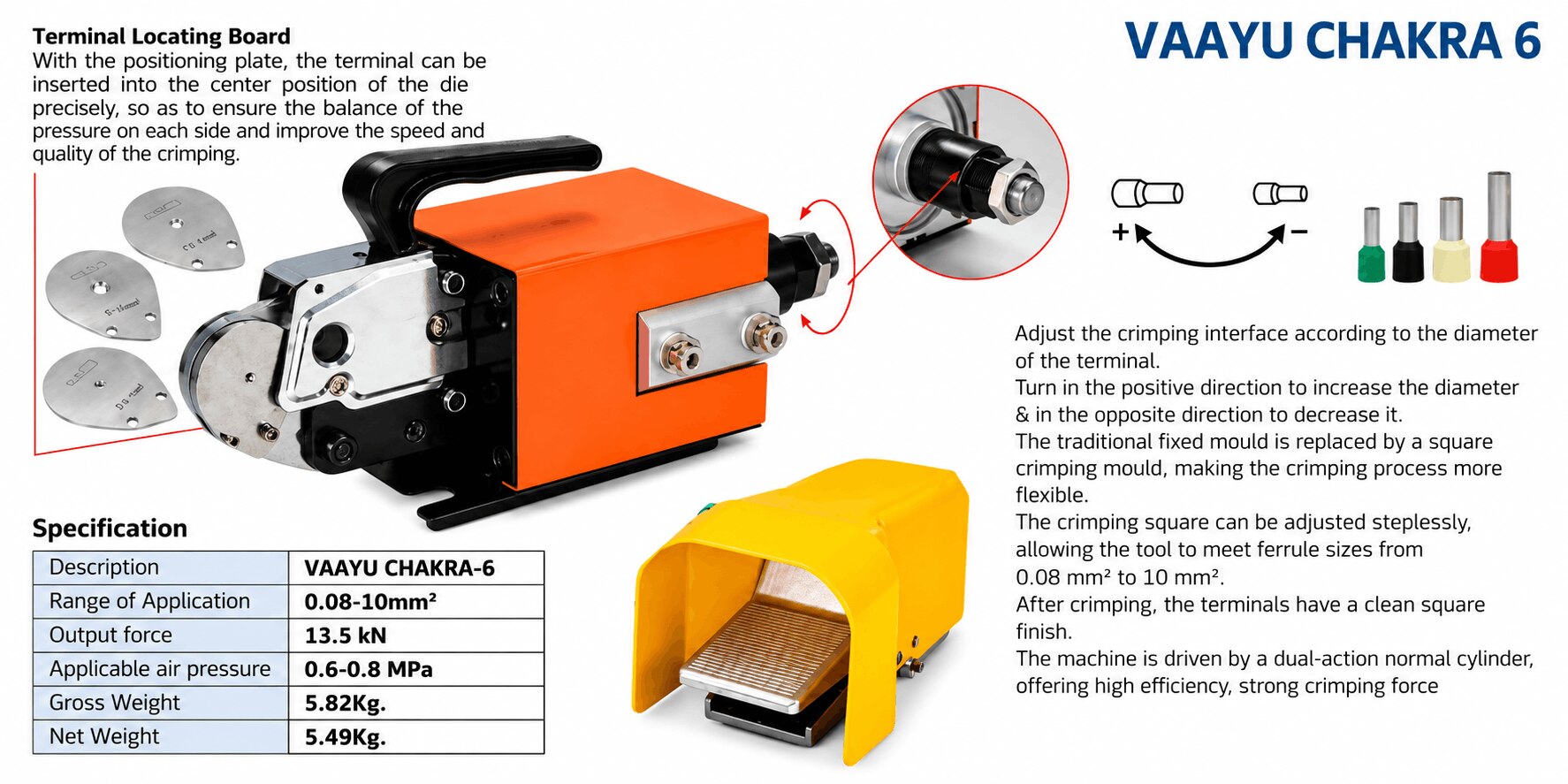

Jainson VAAYU CHAKRA 6 Pneumatic Crimping Tool

The Jainson VAAYU CHAKRA 6 is a pneumatically operated, adjustable square-crimping machine designed primarily for crimping wire-end ferrules / end-sealing ferrules over a broad range of conductor sizes. Unlike conventional crimpers that require separate fixed dies for different sizes, the VAAYU CHAKRA 6 uses an adjustable square crimping mechanism, allowing the crimping opening to be continuously adjusted according to the terminal/ferrule diameter.

Key Technical Specifications

• Brand - Jainson

• Model - VAAYU CHAKRA-6

• Tool Type - Pneumatic Crimping Tool / Machine

• Operation - Compressed-air operated

• Crimping Range - 0.08–10 mm²

• Crimping Profile - Square

• Output / Crimping Force - 13.5 kN

• Required Air Pressure - 0.6–0.8 MPa

• Gross Weight - 5.82 kg

• Net Weight - 5.49 kg

• Actuation - Dual-action pneumatic cylinder

• Adjustment - Stepless crimping-size adjustment

• Foot Control - Pneumatic foot valve

• Accessories - 1 foot air valve + 2 air pipes

• Application - End-sealing/wire-end ferrule crimping

• Crimp Output - Clean square-shaped crimp

Applications

The VAAYU CHAKRA 6 is primarily suited to wire-end ferrule/end-sealing ferrule crimping in the specified 0.08–10 mm² range. The adjustable mechanism makes it useful when different ferrule sizes have to be processed on the same machine.

Typical applications include:

• Electrical control-panel wiring

• Industrial electrical assemblies

• Switchgear and control cabinets

• Distribution panels

• Automation-panel wiring

• Machine-control wiring

• Terminal-block wiring

• Electrical harness production

• Panel-building workshops

• Repetitive ferrule crimping operations
