Jainson VAAYU-10 Pneumatic Crimping Tool

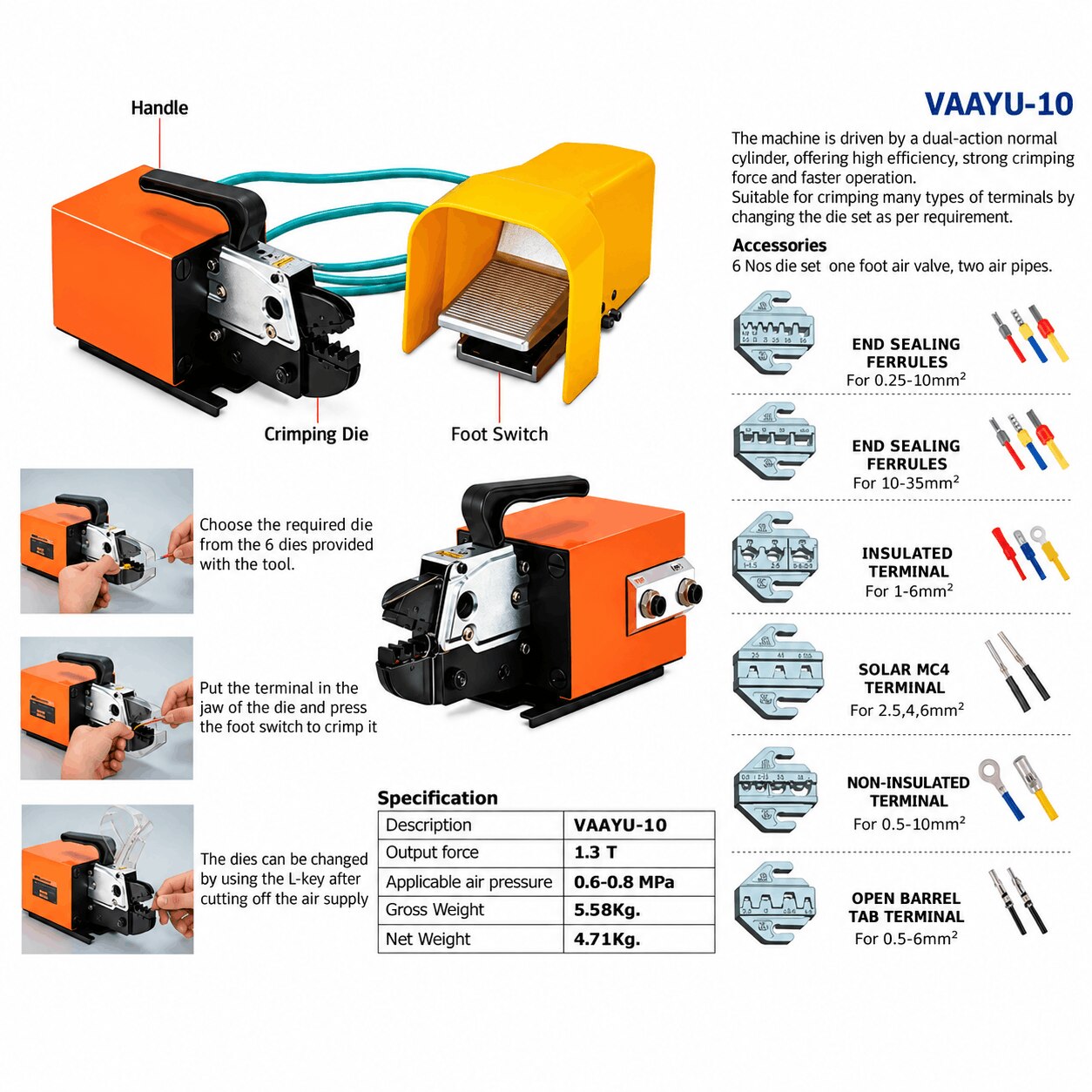

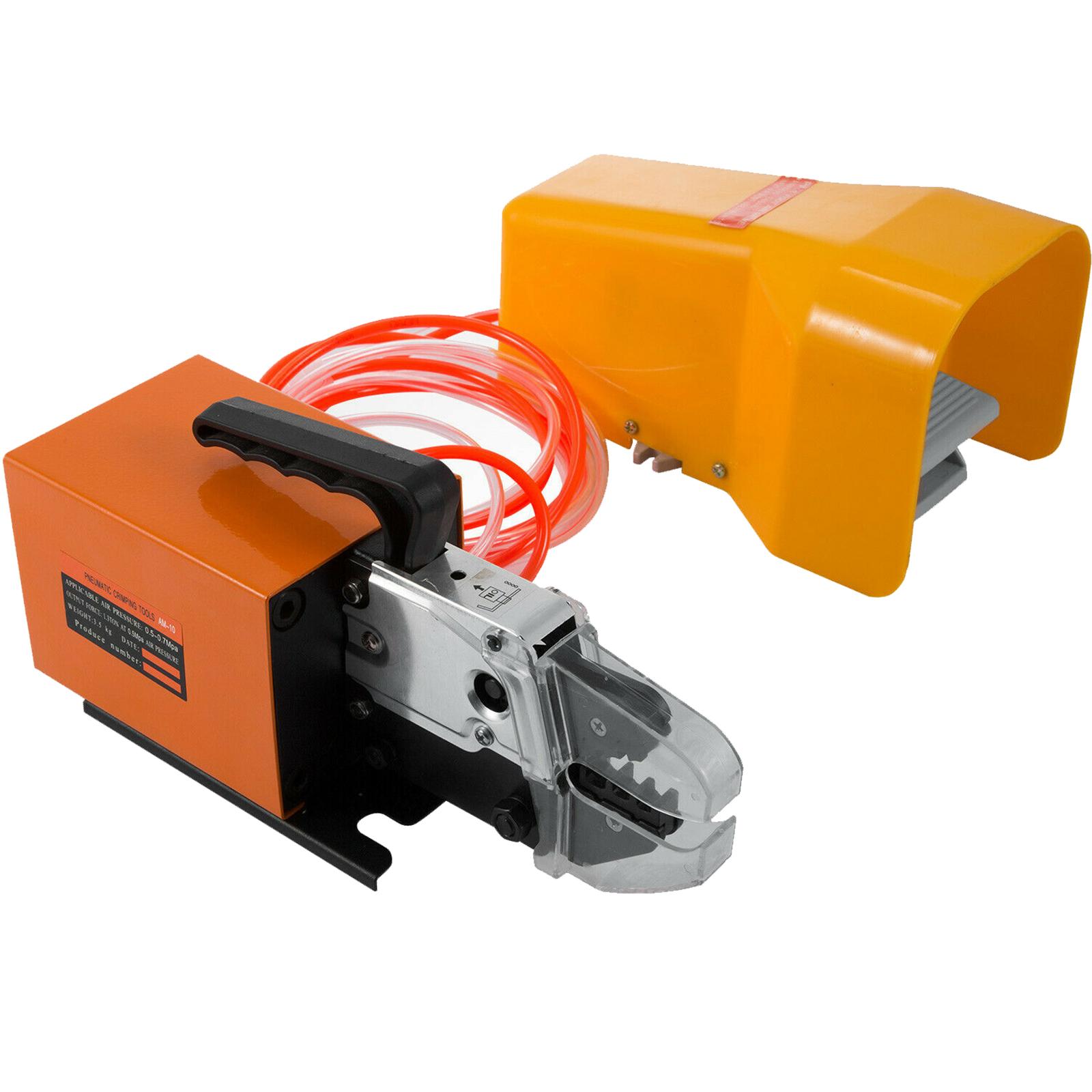

The Jainson VAAYU-10 is a pneumatically operated terminal crimping machine designed for fast, repeatable and high-quality crimping of electrical terminals and connectors. It uses a dual-action pneumatic cylinder to generate the required crimping force and is operated through a foot-operated air valve, allowing the operator to keep both hands free for positioning the wire and terminal.

Technical Specifications

• Brand - Jainson

• Model - VAAYU-10

• Tool Type - Pneumatic crimping machine

• Operating Principle - Pneumatic / compressed-air operated

• Cylinder - Dual-action normal pneumatic cylinder

• Output Crimping Force - 1.3 T

• Approx. equivalent force ≈ 12.7 kN

• Applicable Air Pressure - 0.6–0.8 MPa

• Air Pressure in bar - 6–8 bar

• Net Weight - 4.71 kg

• Gross Weight - 5.58 kg

• Operation - Foot-switch operated

• Die System - Interchangeable die sets

• Standard Die Sets - 6 Nos.

• Air Valve - 1 foot air valve

• Air Pipes - 2

• Suitable Terminals - Ferrules, insulated, non-insulated, solar MC4 and open-barrel tab terminals

Applications

The VAAYU-10 is particularly suitable where large numbers of electrical terminals must be crimped quickly and consistently.

Typical applications include:

• Electrical control-panel wiring

• Industrial electrical assemblies

• Electrical switchgear assembly

• Control cabinets

• Wiring harness production

• Solar-panel and PV wiring

• Electrical equipment manufacturing

• Automotive/electrical harness work

• Appliance wiring

• Machine-panel wiring

• Industrial automation wiring

• Connector and terminal assembly

• General electrical maintenance and production workshops

Its interchangeable dies make it useful where multiple terminal types need to be processed on the same machine.
