Jainson VARUN-400 Hydraulic Crimping Tool

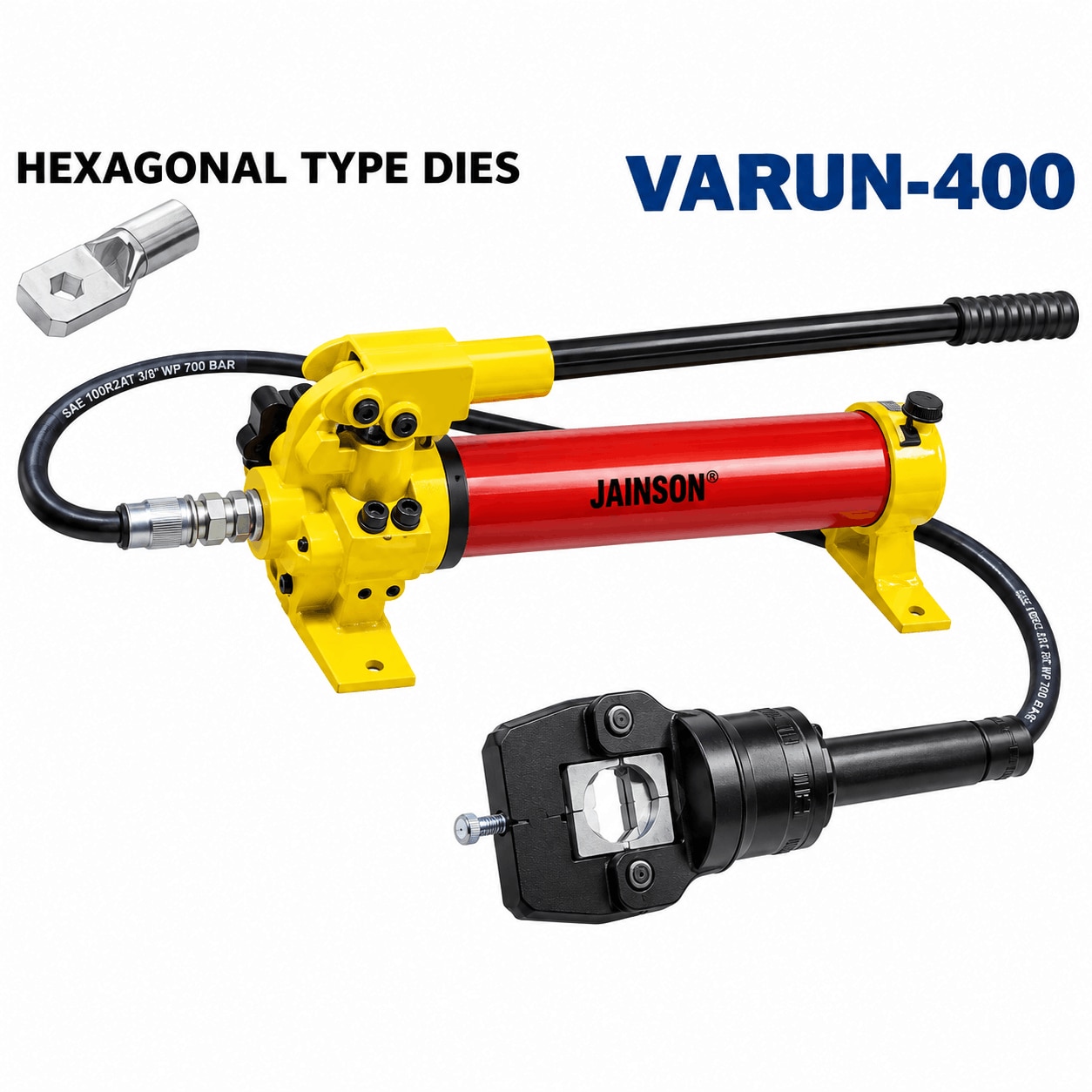

The Jainson VARUN-400 is a heavy-duty, manually operated hydraulic hexagonal crimping tool designed for compression of electrical cable lugs and connectors in the 25 mm² to 400 mm² range. It uses interchangeable hexagonal dies and can be supplied with either a hand-operated hydraulic pump or foot-operated pump.

Technical specifications

• Brand - Jainson

• Model - VARUN-400

• Tool type - Hydraulic compression/crimping tool

• Crimping type - Hexagonal

• Application range - 25–400 mm²

• Compression force - 16 metric tons

• Maximum stroke - 32 mm

• Maximum operating pressure - 10,000 PSI / approx. 700 kg/cm²

• Pump operation - Hand pump / Foot pump

• Head design - Flip-top head

• Die system - Interchangeable hexagonal dies

• Die range - H-25 to H-400

• Number of die sets - 11 sets

• Tool weight - 13.9 kg

• Body material Alloy steel, EN19

• Operation - Manual hydraulic

• Country of origin - India

Typical applications

The VARUN-400 is particularly suitable for:

• Electrical cable lug crimping

• Copper and aluminium cable termination

• Compression of cable connectors

• Power-distribution installations

• Electrical panel and switchgear work

• Industrial electrical maintenance

• Cable jointing and termination

• Heavy-duty electrical installation work
