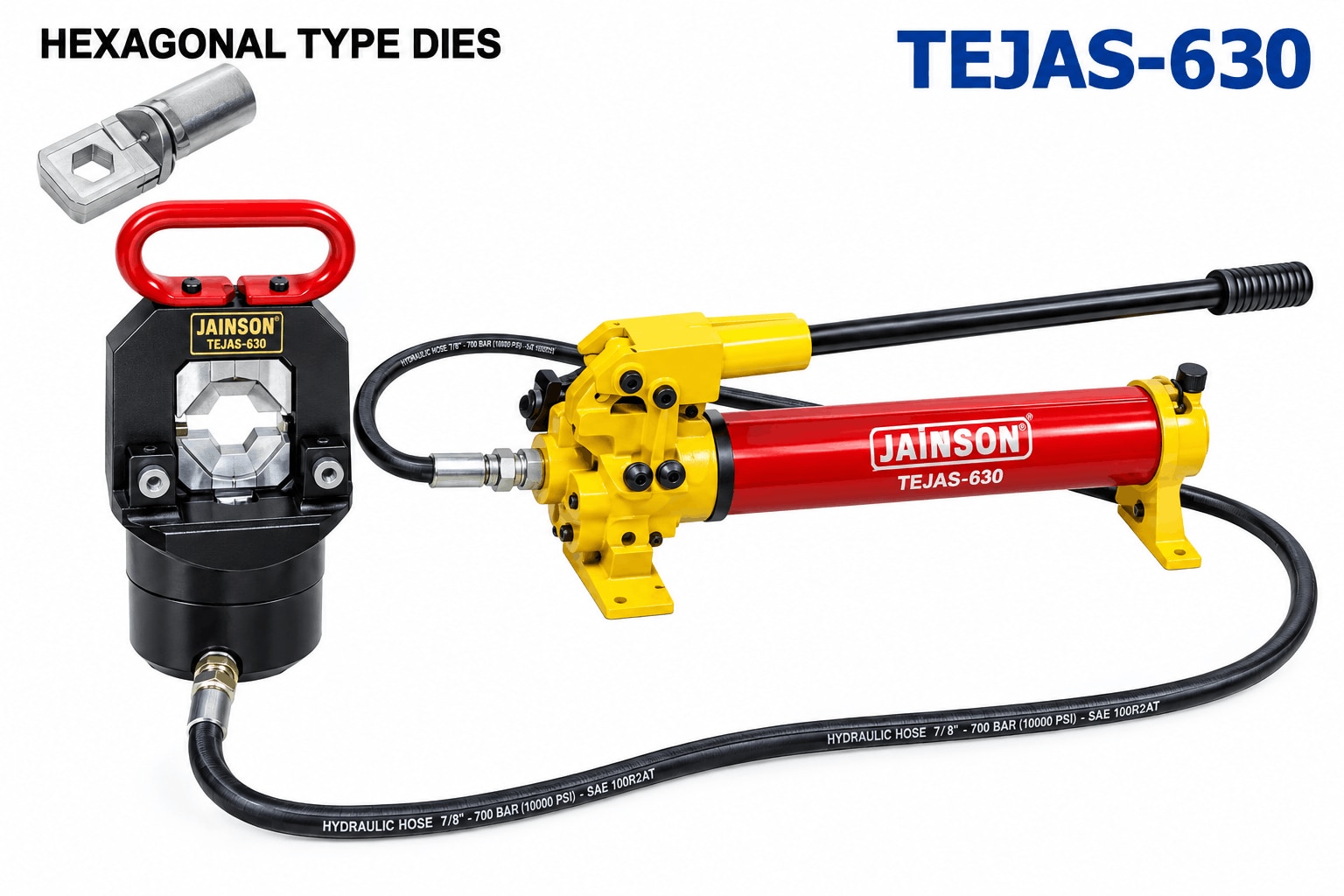

Jainson TEJAS-630 Hydraulic Crimping Tool

The Jainson TEJAS-630 is a heavy-duty, manually operated hydraulic compression crimping tool designed for hexagonal crimping of large-size electrical cable lugs and connectors. It is intended for professional electrical installation, power-distribution, industrial and cable-termination applications. Available specifications consistently list a 50–630 mm² crimping range, 25-ton compression force, 22 mm maximum stroke and 10,000 PSI operating pressure.

Technical specifications

• Brand - Jainson

• Model - TEJAS-630

• Tool type - Hydraulic compression/crimping tool

• Crimping type - Hexagonal

• Application - Compression of electrical cable lugs/connectors

• Crimping capacity - 50–630 mm²

• Compression force - 25 metric tons

• Maximum stroke - 22 mm

• Operating pressure - 10,000 PSI / 700 kg/cm²

• Dies - H-50 to H-630

• Number of die sets - 11 sets

• Head design - Flip-top head

• Construction - Alloy steel, EN-19

• Approx. tool weight - 17.9 kg

• Pump options - Hand pump / foot pump

• Country of manufacture - Made in India

Typical applications

The TEJAS-630 is suitable for applications involving large electrical conductors, including:

• Power-distribution cable termination

• Electrical panel and switchgear work

• Transformer and substation connections

• Industrial electrical installations

• Large copper/aluminium cable lugs

• Compression-type cable connectors

• Power-cable jointing and termination work

• Electrical maintenance and installation projects
