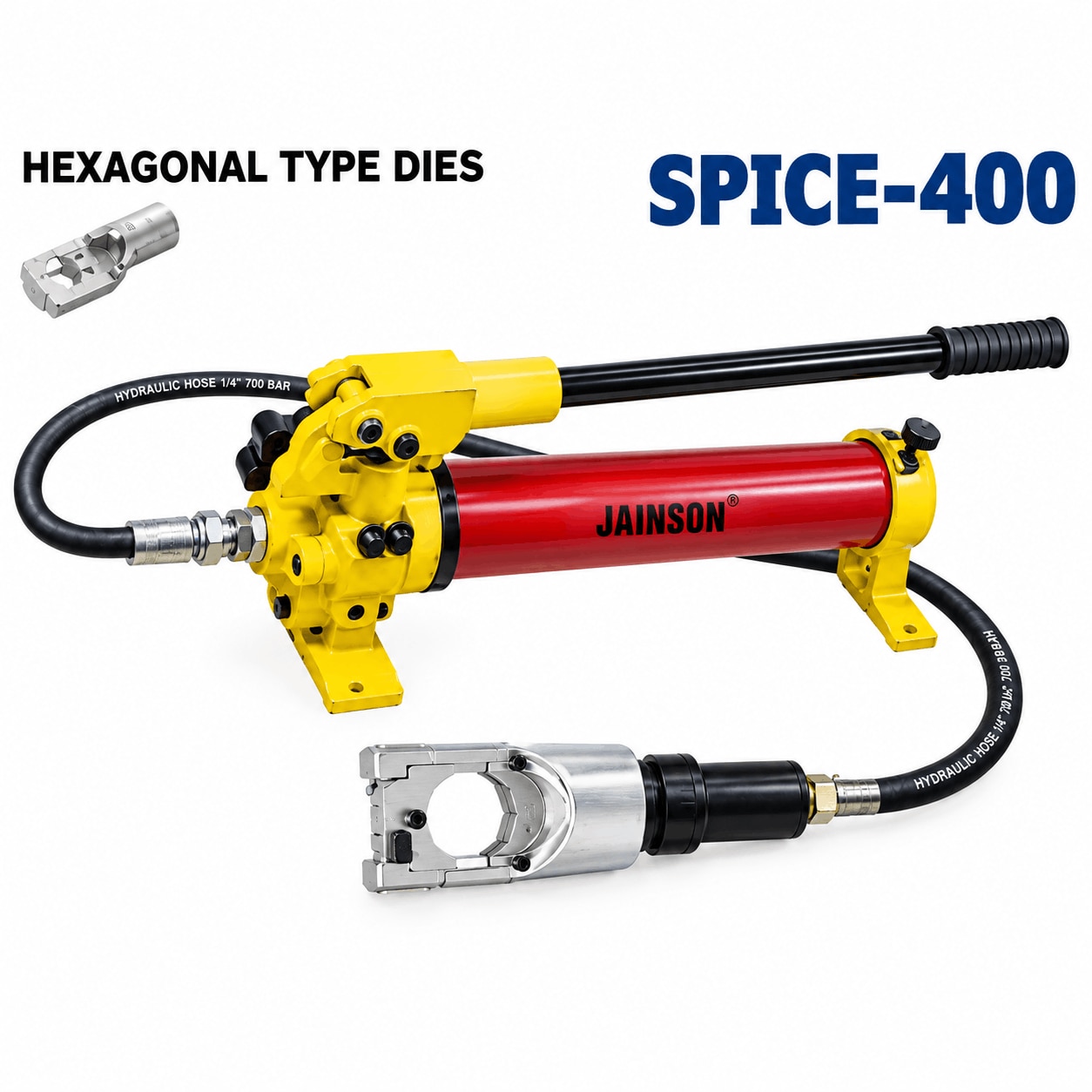

Jainson SPICE-400 Hydraulic Crimping Tool

The Jainson SPICE-400 is a heavy-duty, manually operated hydraulic compression crimping tool designed for hexagonal crimping of large-size electrical cable lugs and connectors. It is intended primarily for copper and aluminium cable terminals from 25 mm² to 400 mm² and uses interchangeable H-type hexagonal dies.

Technical specifications

• Brand - Jainson

• Model - SPICE-400

• Tool type - Hydraulic compression crimping tool

• Crimping type - Hexagonal

• Crimping capacity - 25–400 mm²

• Dies - H-25 to H-400, 11 sets

• Maximum compression force - 16 metric tons

• Maximum stroke - 24 mm

• Operating pressure - 10,000 PSI / 700 kg/cm² (approx. 700 bar)

• Operation - Manual hydraulic

• Pump options - Hand pump or foot pump

• Tool weight - 14.2 kg

• Construction - Alloy steel, EN19

• Crimping profile - Hexagonal

• Design - Compact, heavy-duty hydraulic construction

• Pump system - Two-stage high/low-pressure operation

• Primary application - Copper/aluminium cable lugs and terminals

• Country of manufacture - India

Typical applications

The SPICE-400 is suitable for:

• Power-distribution cable termination

• Electrical panel and switchgear work

• Industrial electrical installations

• Copper cable-lug crimping

• Aluminium cable-lug crimping

• XLPE/PVC power-cable termination

• Transformer and substation installation

• Industrial maintenance

• Heavy-duty electrical wiring

• Compression of cable terminals and connectors
