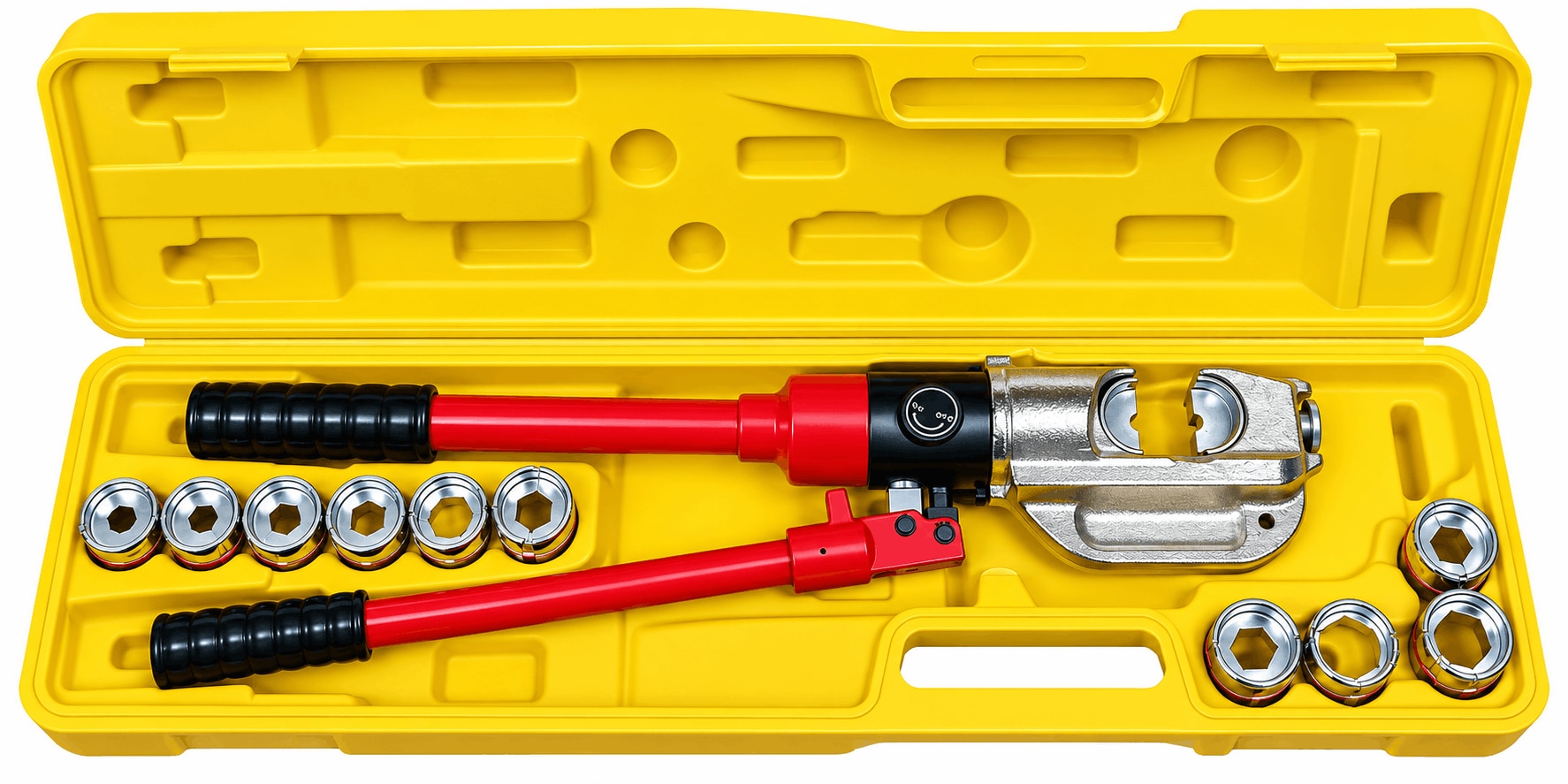

Jainson SHAKTI-400 Hydraulic Crimping Tool

The Jainson SHAKTI-400 is a hand-operated hydraulic compression/crimping tool designed for heavy-duty crimping of electrical cable lugs, terminals, conductors and coded ferrules. It uses interchangeable hexagonal dies covering 25 mm² to 400 mm².

Technical Specifications

• Brand - Jainson

• Model - SHAKTI-400

• Tool Type - Hand-operated hydraulic compression tool

• Crimping Type - Hexagonal

• Crimping Range - 25–400 mm²

• Die Type - Interchangeable hexagonal dies

•Die Range - H-25 to H-400

• Number of Die Sets - 11 sets

• Operating Pressure - 10,000 PSI / approx. 700 kg/cm²

• Compression Force - 16 metric tons

• Maximum Stroke - 24 mm

• Head - Swivel “G” type

• Head Rotation - 180°

• Pump System - Two-stage high/low pressure

• Construction - High-grade alloy steel

• Operation - Manual hydraulic

• Approx. Weight - 8.5 kg

• Packaging - Carry/storage case

Typical Applications

• Crimping copper and aluminium cable lugs

• Electrical cable termination

• Power-distribution cable installation

• Industrial electrical panels

• Switchgear and electrical equipment installation

• Cable jointing and termination work

• Compression of suitable conductors and coded ferrules

• Electrical maintenance and installation work
