Jainson Hydraulic Crimping Tool - Prithvi 1000

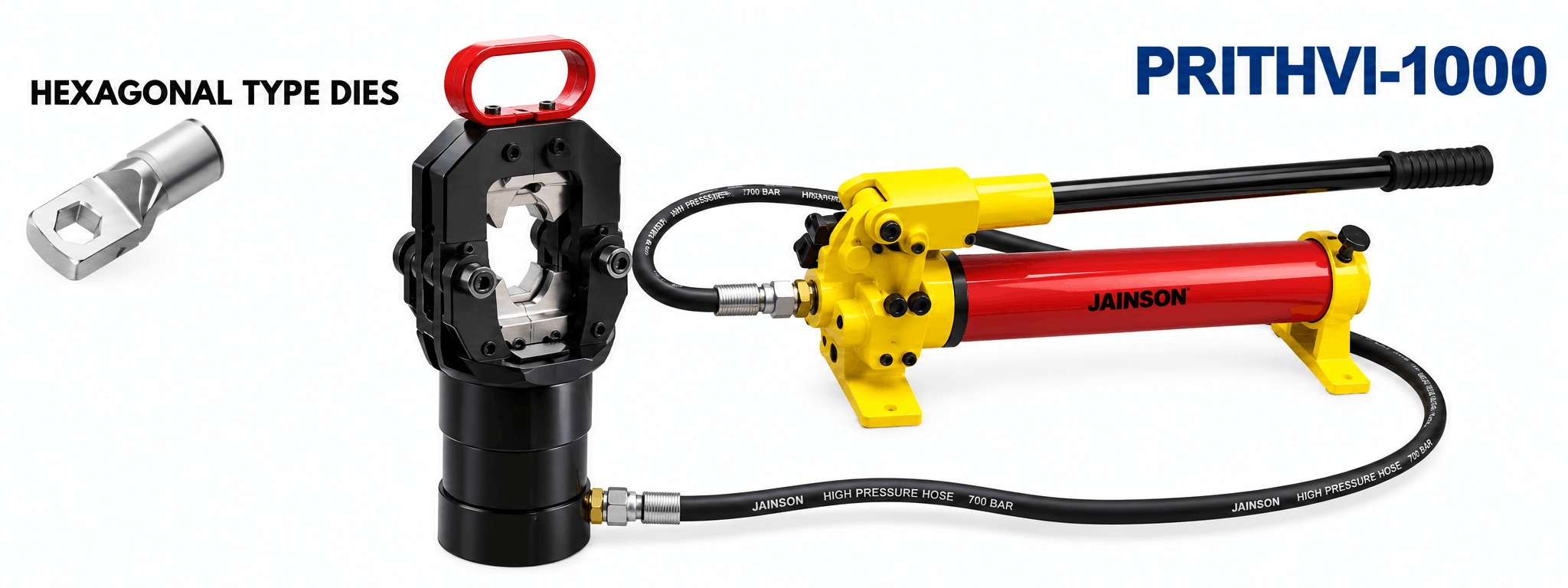

Jainson PRITHVI-1000 Hydraulic Crimping Tool

The Jainson PRITHVI-1000 is a heavy-duty, manually operated hydraulic compression/crimping tool with hexagonal dies, designed for high-capacity crimping of electrical cable lugs and terminals. It is intended for applications where substantial and repeatable crimping force is required, particularly for large copper and aluminium conductors.

Technical Specifications

• Brand - Jainson

• Model - PRITHVI-1000

• Tool Type - Heavy-duty hydraulic compression/crimping tool

• Crimping Type - Hexagonal

• Crimping Capacity - 50 mm² to 1000 mm²

• Crimping Dies - H-50 to H-1000

• Number of Die Sets - 13 sets

• Maximum Crimping Force - 45 Metric Tons

• Maximum Stroke - 22 mm

• Operating Pressure - 10,000 PSI / 700 kg/cm²

• Pump Options - Hand pump / Foot pump

• Tool Weight - 23.5 kg

• Main Material - Alloy steel, EN19

• Application - Copper & aluminium cable terminals/lugs

• Crimp Profile - Hexagonal

• Operation - Hydraulic, manually actuated

Applications

The PRITHVI-1000 is primarily suited to heavy-duty electrical cable termination and compression work, including:

• Copper cable lugs

• Aluminium cable lugs

• Heavy-section power cables

• Cable terminal ends

• Electrical distribution installations

• Industrial electrical panels

• Power-system installation and maintenance

• Large conductor termination work
