Jainson Hydraulic Crimping Tool - HPCT 20A

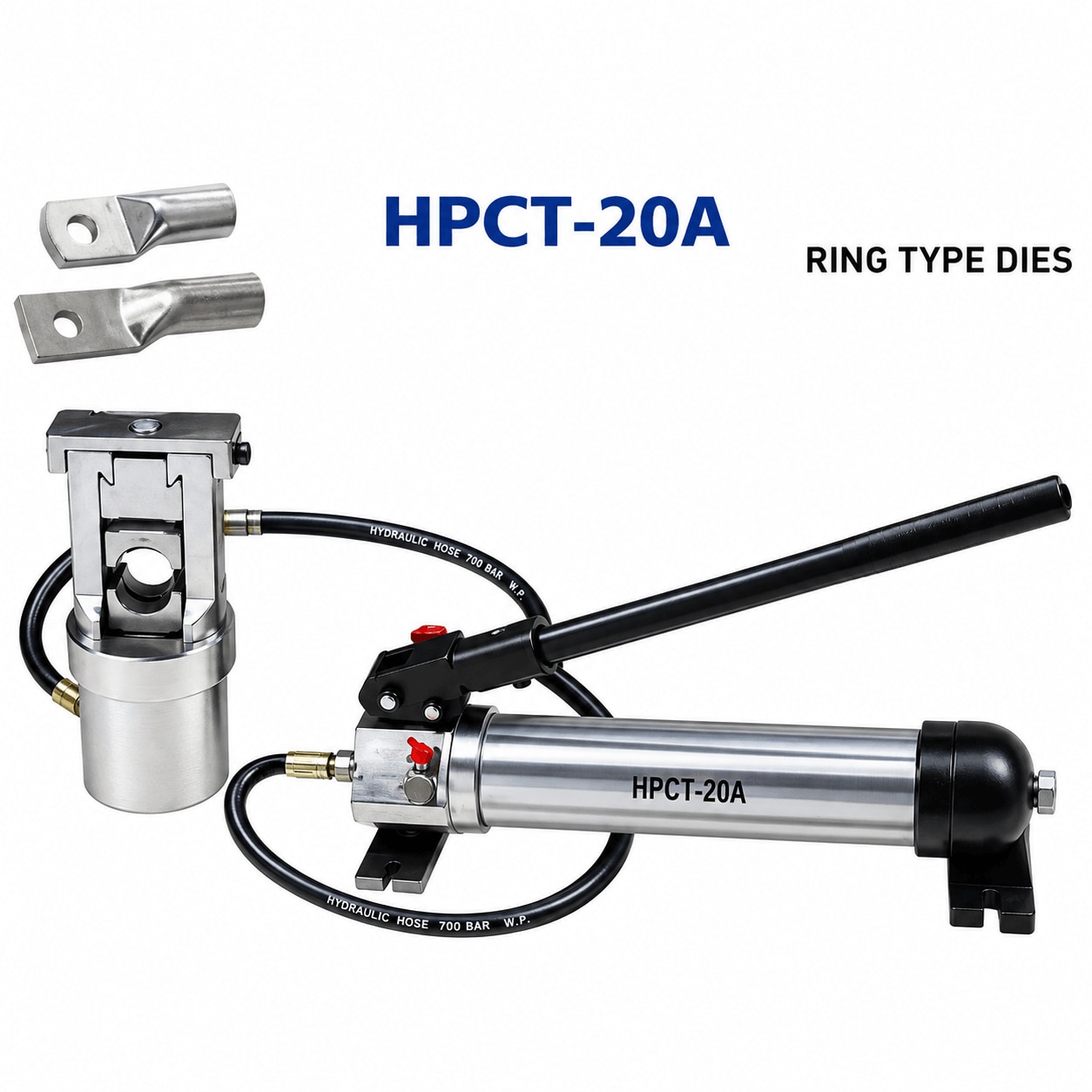

Jainson HPCT-20A Hydraulic Crimping Tool

The Jainson HPCT-20A is a heavy-duty, hand-operated hydraulic crimping/compression tool designed for crimping copper and aluminium cable terminal ends. It uses ring-type dies and is intended for industrial electrical cabling and heavy cable termination work.

Technical Specifications

• Brand - JAINSON

• Model - HPCT-20A

• Tool Type - Hydraulic Crimping / Compression Tool

• Operation - Hand-operated hydraulic

• Crimping Type - Ring Type

• Application - Copper & aluminium cable terminal ends

• Maximum Crimping Capacity - Up to 300 mm²

• Die Type - Ring type

• Dies Supplied - R-11, R-12, R-13, R-14, R-15, R-16

• Number of Die Sets - 6 sets

• Tool Weight - 15.1 kg

• Hydraulic Pump - Hand-operated

• Hydraulic Pressure - Up to 250 kg/cm² according to product listings

• Hydraulic Hose - 2 m length reported for this HPCT hydraulic configuration

• Crimping Head Material - Special alloy steel, according to product specification listings

• Intended Use - Heavy-duty industrial cabling

Applications

The HPCT-20A is particularly useful for:

1) Electrical cable termination - Used to crimp cable lugs and terminal ends onto large electrical conductors.

2) Copper cable lug crimping - Suitable for compression of copper cable terminals where a secure, low-resistance electrical connection is required.

3) Aluminium cable termination - Designed for crimping suitable aluminium cable terminal ends within its rated capacity.

4) Power distribution work - Useful for electrical distribution panels, feeder cables, switchgear and other power-distribution installations.

5) Industrial electrical installations - Suitable for heavy-duty cable termination during installation, maintenance and repair work.

6) Electrical contractors and maintenance teams - Its hydraulic operation reduces the manual effort required compared with conventional mechanical crimping tools.

7) Large-size cable connections - With a rated capacity up to 300 mm², it is intended for substantially larger conductors than ordinary hand crimpers.
