Jainson Hydraulic Crimping Tool - HPCT 150B (Ring)

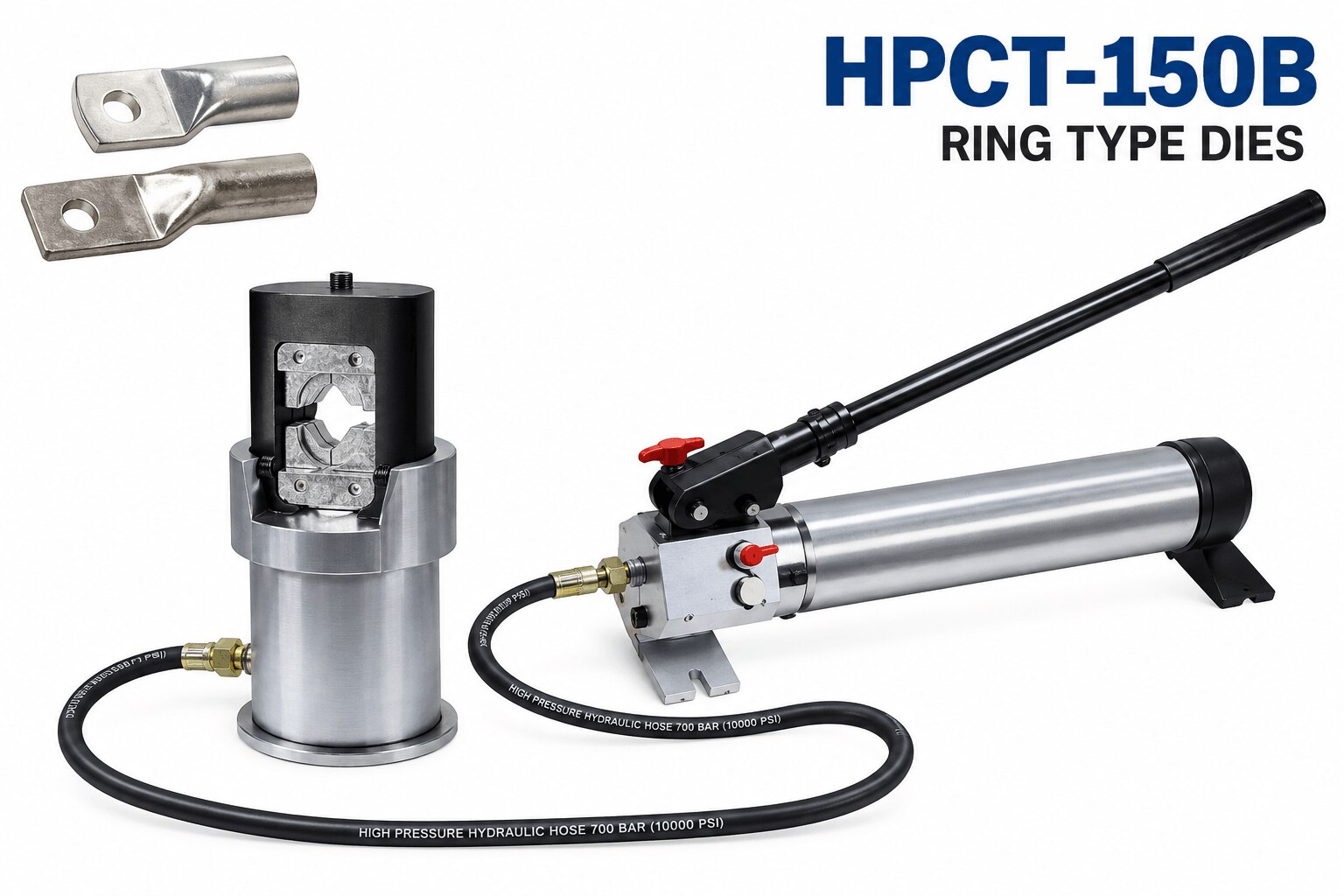

Jainson HPCT-150B Ring Type Hydraulic Crimping Tool

The Jainson HPCT-150B is a heavy-duty, hand-operated hydraulic compression/crimping tool with ring-type dies, designed for crimping electrical cable terminals and connectors onto large-size copper and aluminium conductors.

Technical specifications

• Brand - Jainson

• Model - HPCT-150B

• Tool type - Hydraulic crimping / compression tool

• Operation - Hand-operated hydraulic

• Die type - Ring type

• Crimping capacity - Up to 1000 mm²

• Ring dies supplied - R-11 to R-23, R-27, R-29

• Number of die sets - 15 sets

• Tool weight - 26.5 kg

• Hydraulic hose - 2 m length for HPCT-150 system

• Hydraulic pressure - Up to 250 kg/cm² reported by a Jainson distributor, approximately 24.5 MPa / 245 bar

• Application - Copper/Aluminium cable terminal crimping

• Actuation - Separate hydraulic pump + crimping jack

• Construction - Heavy-duty alloy-steel crimping jack

• Typical use - Electrical installation, power distribution, cable termination and industrial maintenance

Applications

The HPCT-150B Ring is primarily suitable for large-size electrical cable termination, including:

• Copper cable terminal crimping

• Aluminium cable terminal crimping

• Compression of cable lugs

• Compression of electrical terminals

• Power-distribution cable termination

• Industrial electrical installation

• Electrical panel and switchgear work

• Transformer and substation cable connections

• Heavy-duty maintenance work

• Large conductor joint/termination preparation
