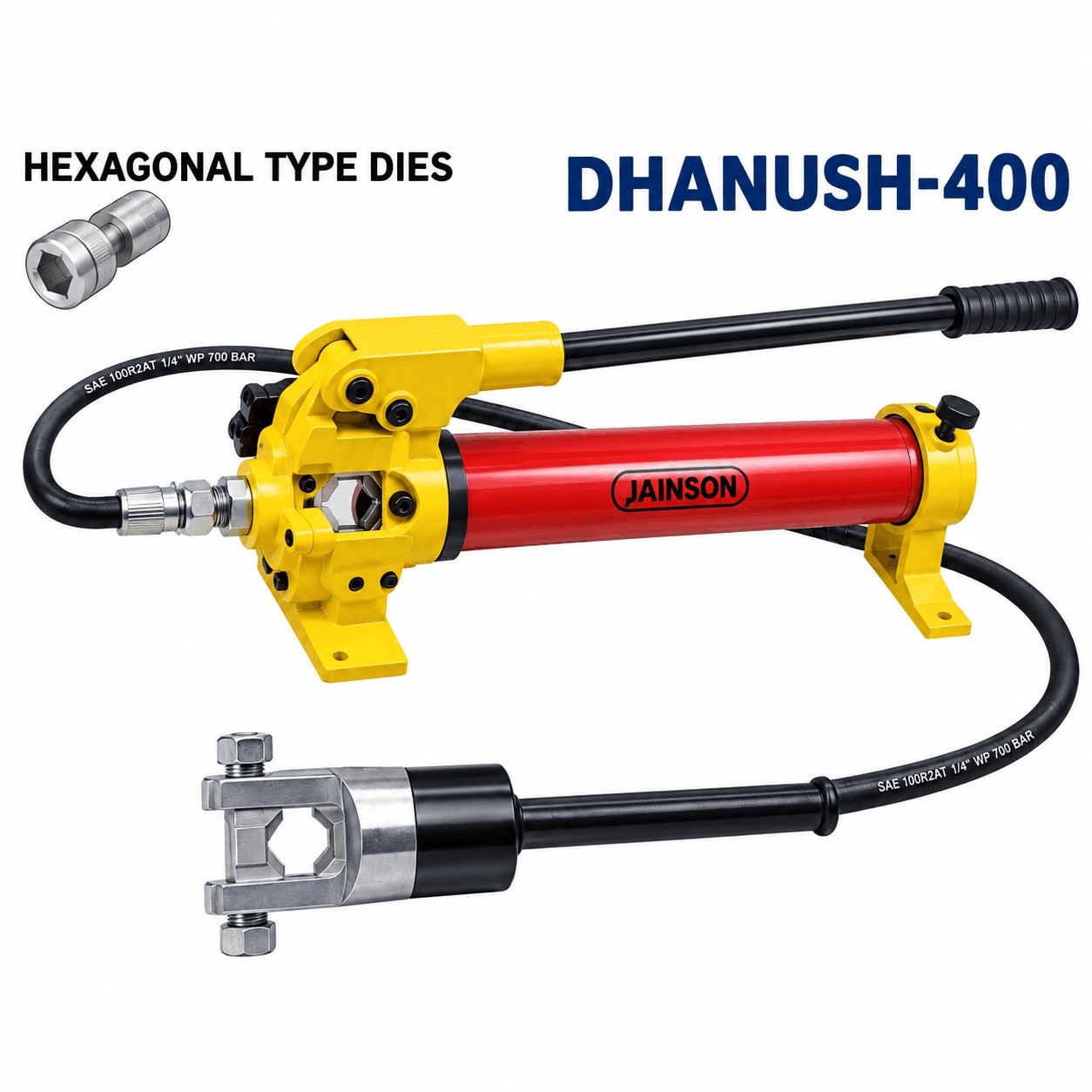

Jainson DHANUSH-400 Hydraulic Crimping Tool

The Jainson DHANUSH-400 is a heavy-duty, manually operated hydraulic compression crimping tool designed for crimping large copper and aluminium cable lugs/terminal ends. It uses hexagonal compression dies and is intended for electrical installation, power distribution, industrial cabling and overhead-line work.

Technical specifications

• Brand - Jainson

• Model - DHANUSH-400

• Tool type - Manual hydraulic crimping tool

• Crimping method - Hexagonal compression

• Crimping capacity - 25–400 mm²

• Die type - Hexagonal

• Standard die set - H-25 to H-400, 11 sets

• Compression force - 16 metric tons

• Maximum stroke - 24 mm

• Operating pressure - 10,000 PSI / 700 kg/cm²

• Hydraulic system - Two-stage high/low-pressure system

• Head design - Openable/flip-type head configuration

• Body material - Alloy steel, EN19

• Operation - Hand pump / foot-pump configuration

• Application - Copper & aluminium cable terminals/lugs

• Country of manufacture - India

• Approx. tool weight - 15.8 kg

Applications

The DHANUSH-400 is suitable for:

• Copper cable lugs and terminal ends

• Aluminium cable lugs and terminal ends

• Power-distribution cable termination

• Industrial electrical installations

• Switchgear and panel wiring

• Transformer and substation cabling

• Overhead-line electrical work

• Large cross-section power cables

• General heavy-duty electrical crimping
