Jainson Hydraulic Crimping Tool - Dhanush 1000

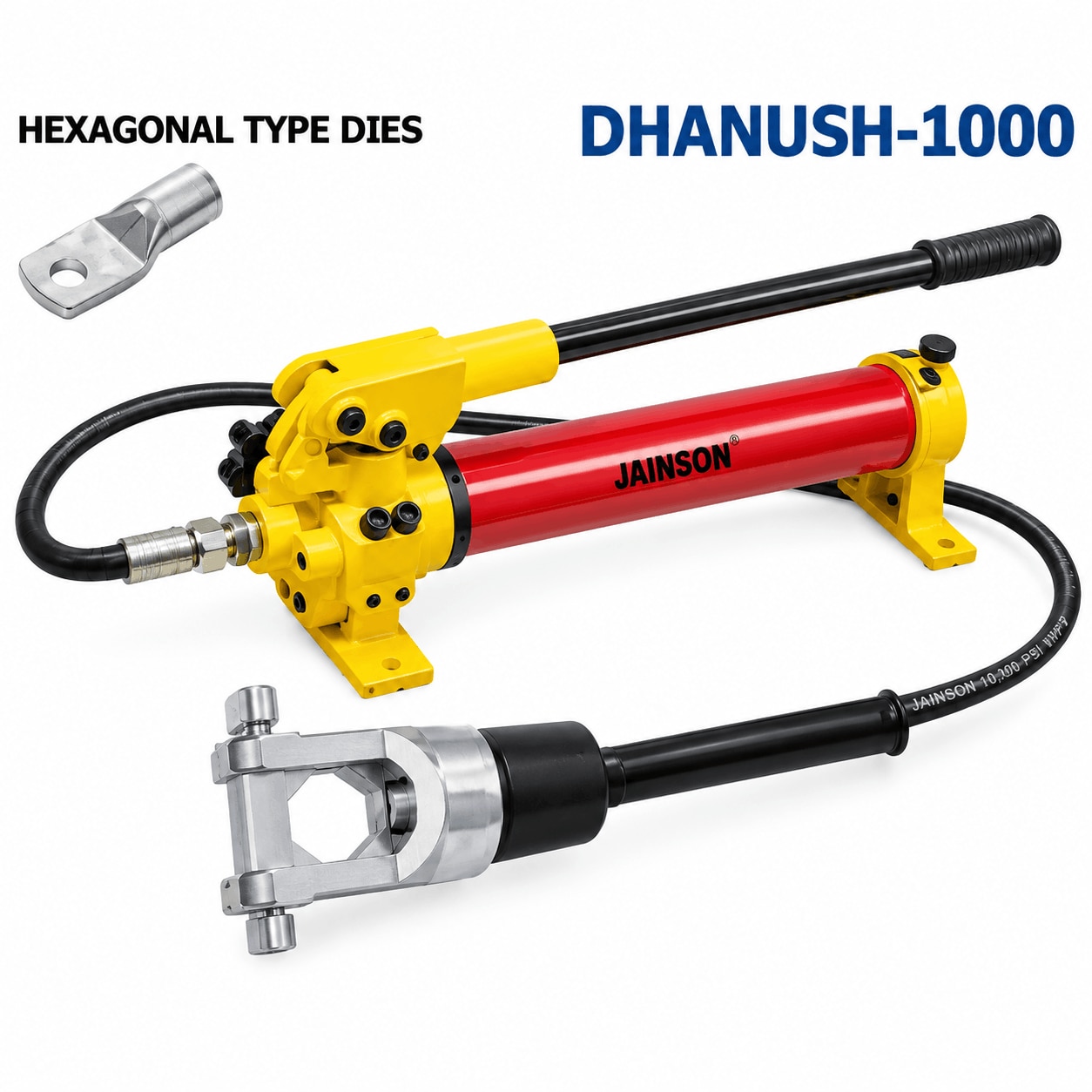

Jainson DHANUSH-1000 Hydraulic Crimping Tool

The Jainson DHANUSH-1000 is a heavy-duty, manually operated hydraulic compression/crimping tool with hexagonal dies, designed for professional crimping of large-size electrical cable lugs and terminals.

Technical specifications

• Brand - Jainson

• Model - DHANUSH-1000

• Tool type - Hydraulic compression/crimping tool

• Crimping type - Hexagonal

• Application range - 50–1000 mm²

• Die range - H-50 to H-1000, 13 sets

• Maximum pressure - 30 Metric Tons

• Operating pressure - 10,000 PSI / approx. 700 kg/cm² (700 bar)

• Maximum stroke - 22 mm

• Pump operation - Hand pump / foot pump

• Tool weight - 19 kg

• Construction material - Alloy steel, EN19

• Pressure system - Two-stage high/low-pressure operation

• Crimping geometry - Hexagonal compression

• Origin - Made in India

Typical applications

The DHANUSH-1000 is particularly suitable for:

• Heavy-duty power cable termination

• Copper cable lug crimping

• Aluminium cable lug crimping

• Large electrical terminals and connectors

• Industrial electrical installations

• Power-distribution projects

• Electrical panel and switchgear work

• Transformer and substation cable termination

• Cable-jointing and maintenance operations

Its 50–1000 mm² range makes it especially useful where conventional hand-operated crimpers cannot provide sufficient force.
