Jainson Hydraulic Crimping Tool - Bhoomi 400

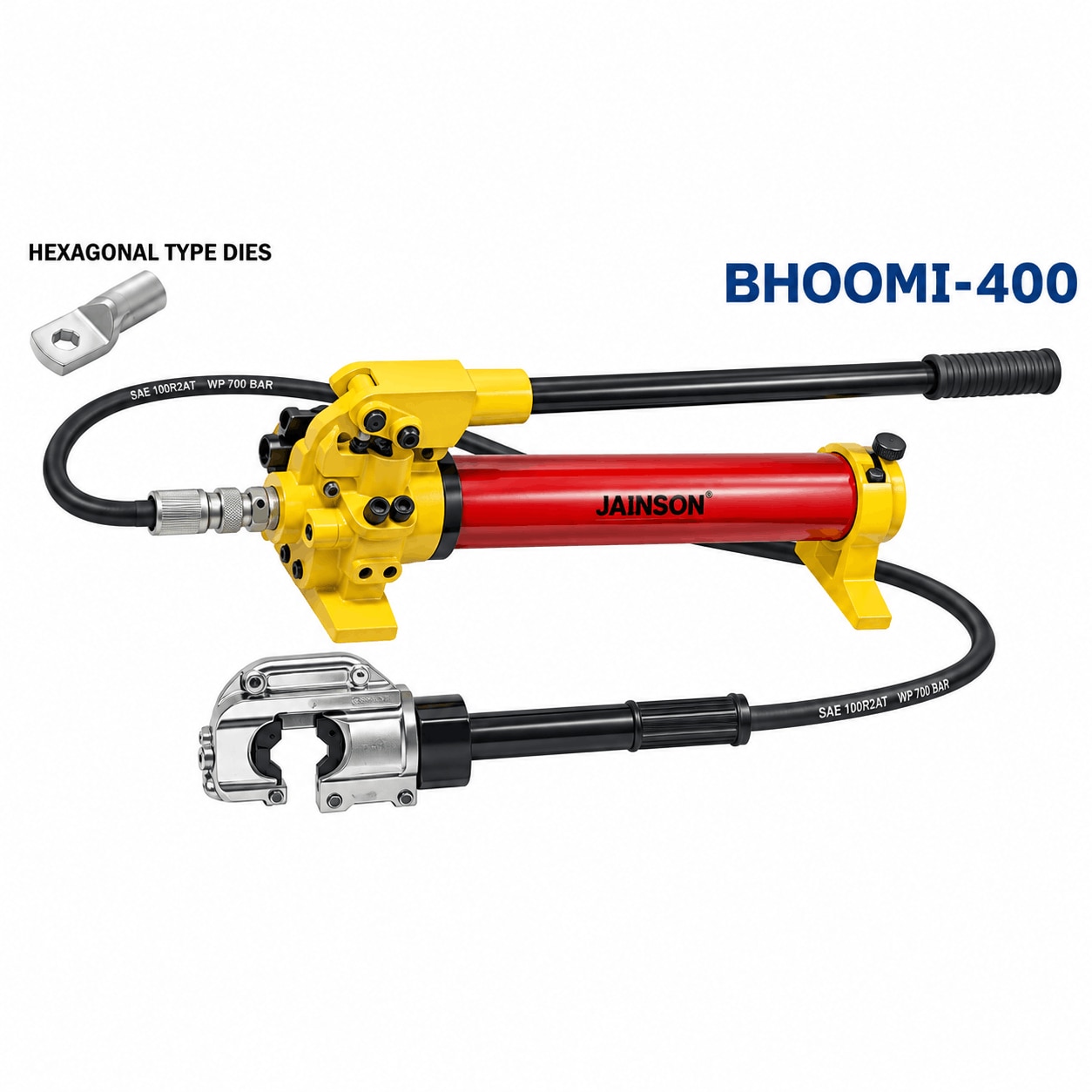

Jainson BHOOMI-400 Hydraulic Crimping Tool

The Jainson BHOOMI-400 is a heavy-duty, manually operated hydraulic compression crimping tool designed for reliable hexagonal crimping of electrical cable lugs and connectors.

Key Technical Specifications

• Brand - Jainson

• Model - BHOOMI-400

• Tool Type - Hydraulic compression/crimping tool

• Crimping Type - Hexagonal

• Operation - Manual hydraulic

• Pump Options - Hand pump / Foot pump

• Crimping Capacity - 25 mm² to 400 mm²

• Compression Force - 16 metric tons

• Maximum Stroke - 24 mm

• Operating Pressure - 10,000 PSI / 700 kg/cm²

• Die Range - H-25 to H-400

• Number of Die Sets - 11 sets

• Head Design - Swivel “G” type

• Head Rotation - 180°

• Approx. Tool Weight - 12.5 kg

• Construction - Heavy-duty alloy-steel construction

• Material Treatment - EN19 alloy steel, tempered and hardened

• Application - Electrical cable lug/connector crimping

Typical Applications

The BHOOMI-400 is suitable for:

• Crimping copper and aluminium cable lugs

• Electrical cable termination

• Power-distribution installations

• Industrial electrical panels

• Electrical contracting work

• Power-cable installation and maintenance

• Heavy-duty field cable termination

• Compression of compatible coded terminals/connectors
