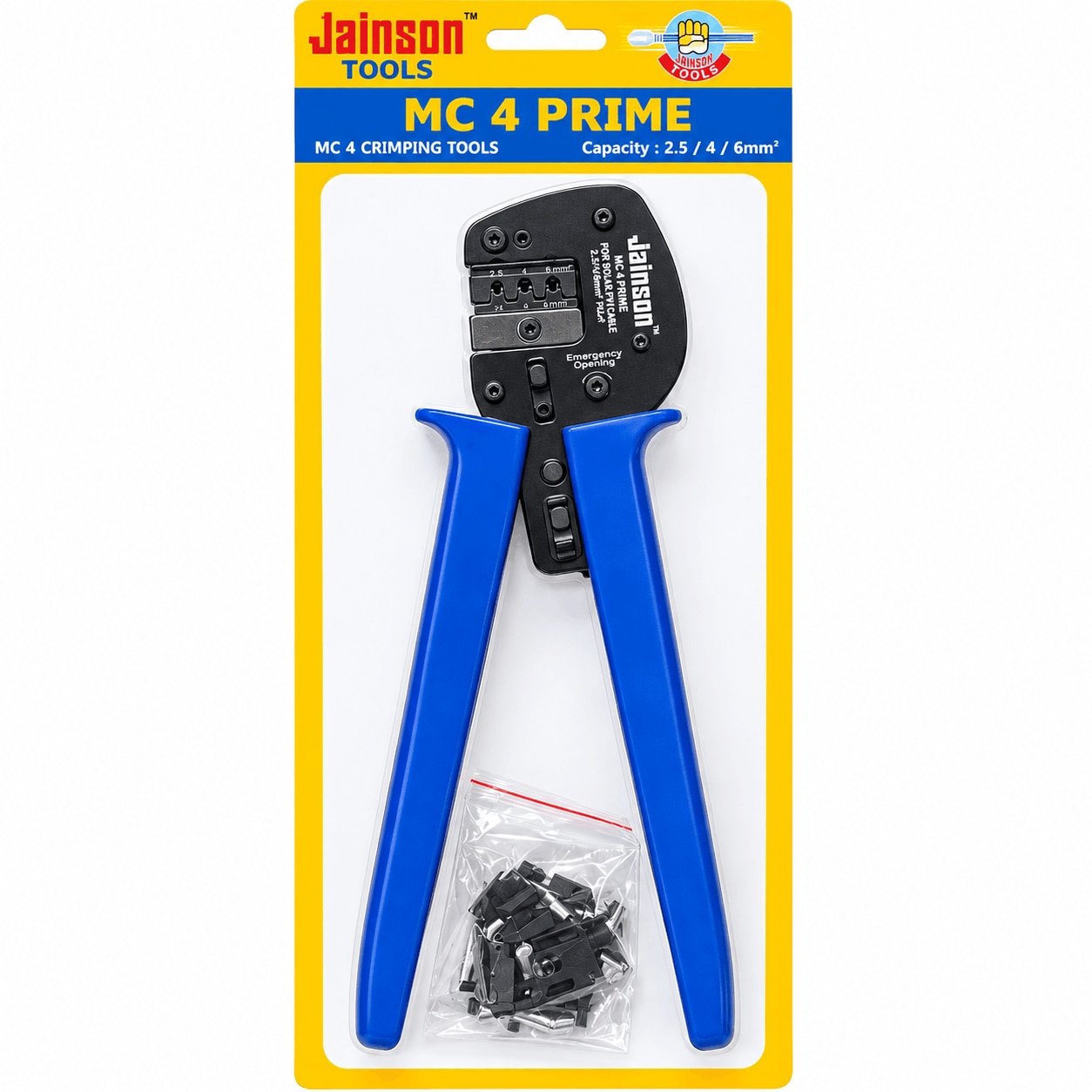

Jainson Crimping Tool - MC4 Prime

The Jainson MC-4 PRIME is a professional hand-operated solar terminal crimping tool designed specifically for crimping MC4 male and female solar connector contacts onto photovoltaic (PV) cables.

Technical Description

• Brand - Jainson

• Model - MC-4 PRIME

• Tool type - Manual / hand-operated solar terminal crimping tool

• Application - MC4 solar connector crimping

• Compatible cable sizes - 2.5 / 4 / 6 mm²

• Crimping force - 1.2 metric tons

• Operating mechanism - High-precision ratchet mechanism

• Crimping jaw - EDM-finished / EDM crimping jaw

• Handle material - TPR + PP

• Approx. tool weight - 720 g

• Operation - Manual

• Connector type - MC4 male & female solar connector contacts

• Construction - Steel tool construction

• Country of origin - India

• Typical use - Solar PV module and photovoltaic cable installation

Application

The principal application is solar photovoltaic installation, particularly termination of PV cables at:

• Solar modules

• PV string connections

• DC combiner/string boxes

• Solar inverter DC connections

• Rooftop solar installations

• Ground-mounted solar plants

• Solar EPC installation and maintenance work
