Jainson Crimping Tool - Ashoka 400

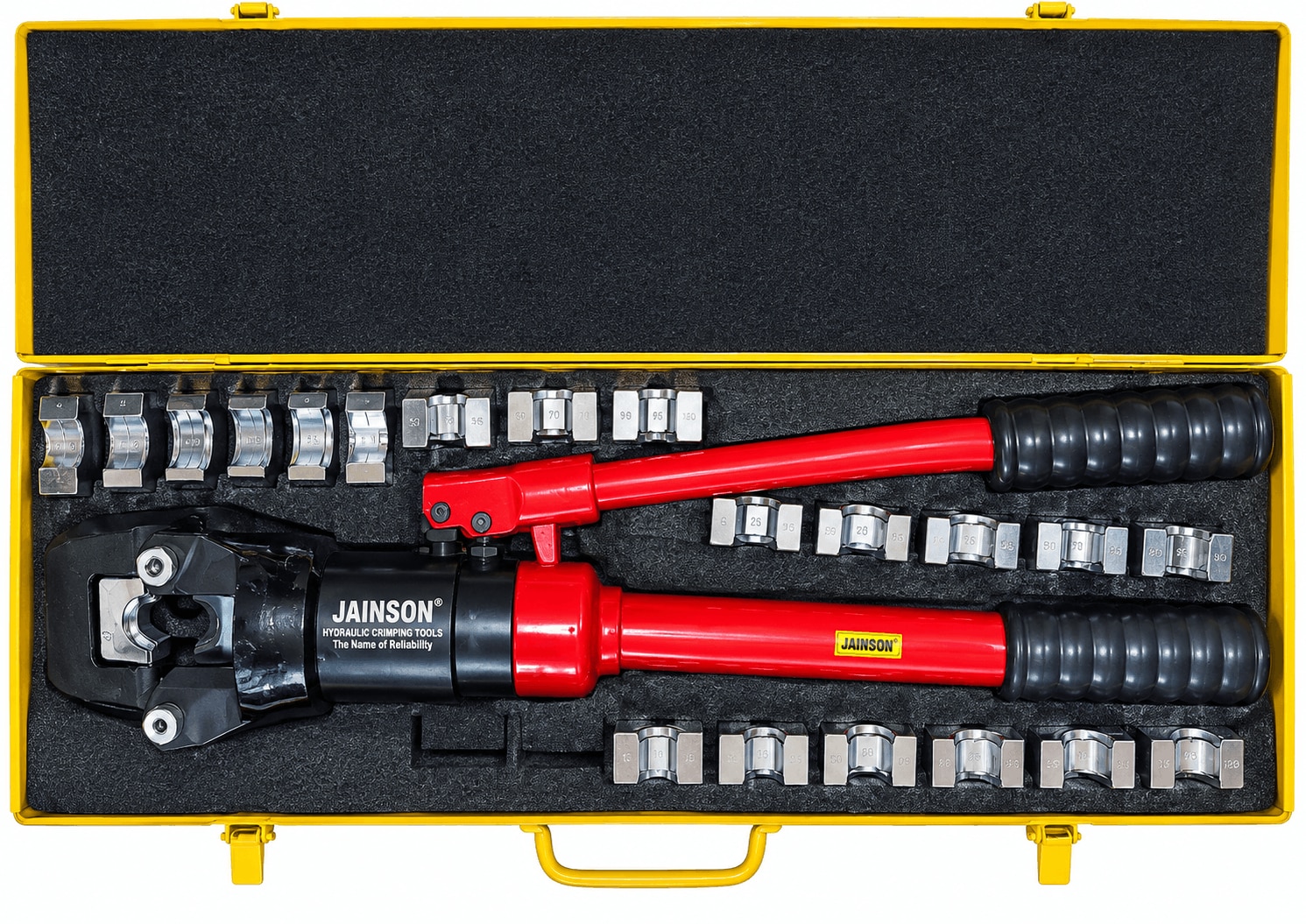

Jainson Ashoka-400 Hydraulic Crimping Tool

The Jainson Ashoka-400 is a heavy-duty, hand-operated hydraulic crimping tool designed for making reliable hexagonal compression joints on electrical cables, conductors, lugs, terminals and coded ferrules.

Technical Specifications

• Brand - Jainson

• Model - Ashoka-400

• Tool Type - Hand-operated hydraulic crimping tool

• Crimping Type - Hexagonal compression

• Crimping Capacity - 25–400 mm²

• Compression Force - 16 metric tons

• Operating Pressure - 10,000 PSI / approx. 700 kg/cm²

• Die Type - Interchangeable hexagonal dies

• Die Range - H-25 to H-400

• Number of Die Sets - 11 sets

• Maximum Stroke - 32 mm

• Hydraulic System - Two-stage high/low pressure system

• Pressure Control - Calibrated pressure-release valve

• Head - Flip/flip-flop head design

• Body Material - High-grade alloy steel

• Approx. Weight - 8.5 kg

• Country of Origin - India

Typical Applications

The tool is suitable for:

• Electrical cable lug crimping

• Copper and aluminium cable termination

• Power-distribution installations

• Industrial electrical wiring

• Control-panel and switchgear work

• Cable jointing and termination

• Electrical maintenance and repair

• Compression of coded ferrules

• Heavy-duty field installation work
