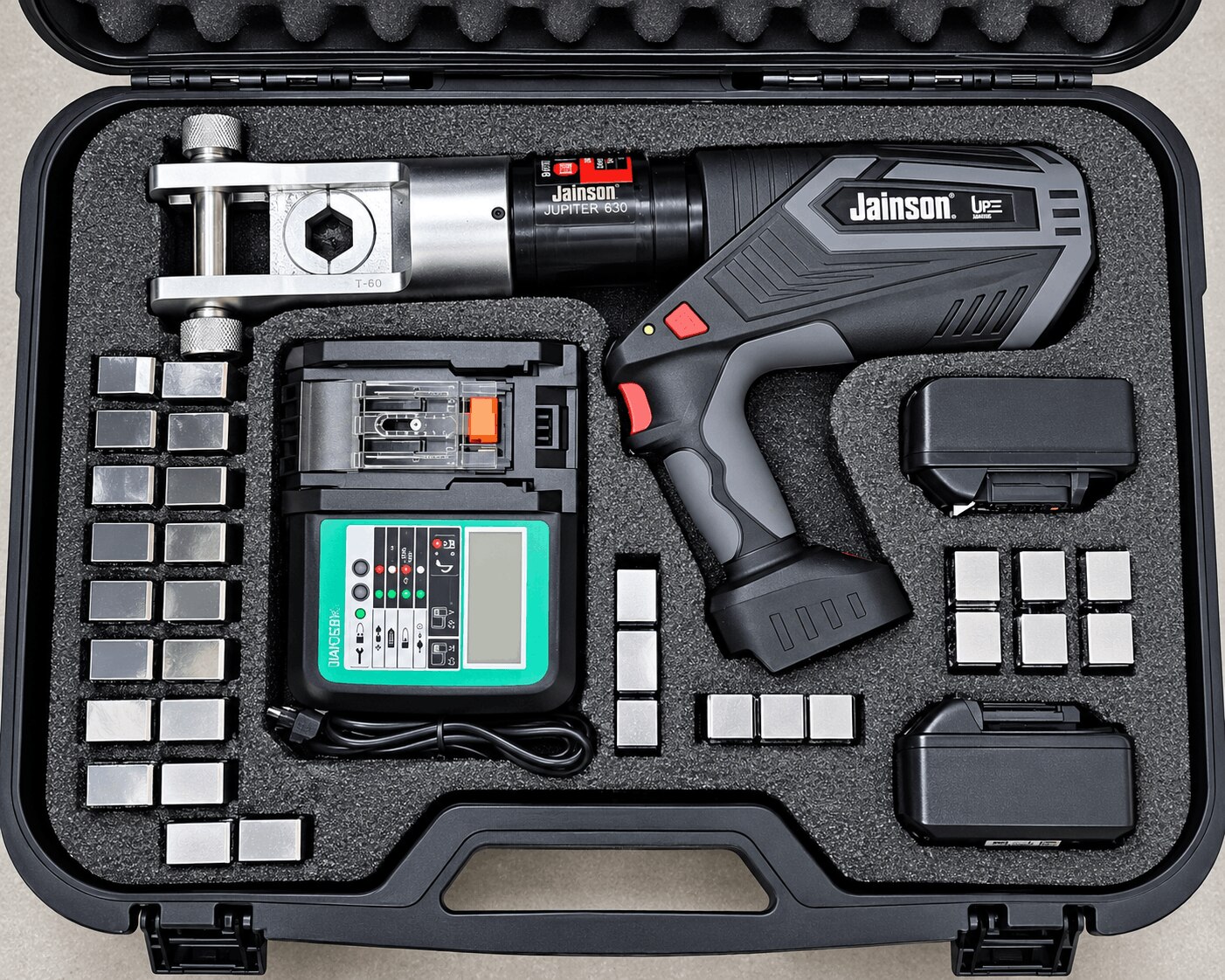

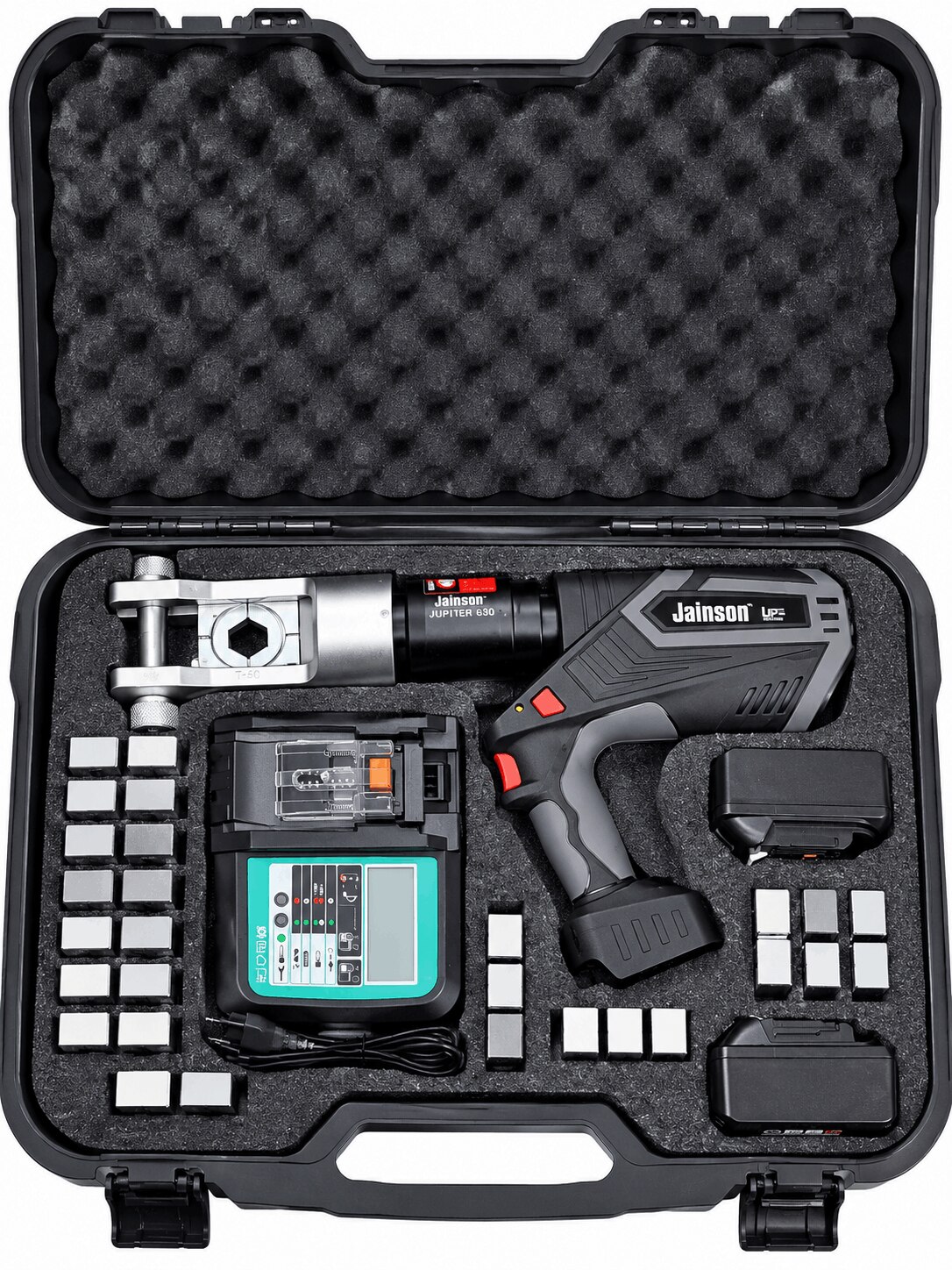

Jainson Battery Powered Crimping Tool - Jupiter 630

The Jainson JUPITER-630 is a heavy-duty, battery-operated hydraulic crimping tool designed for high-capacity electrical cable and conductor termination. It is intended for professional electrical installation, power-distribution, utility, industrial and infrastructure applications.

Technical specifications

• Brand - Jainson

• Model - JUPITER-630

• Tool type - Battery-operated hydraulic crimping tool

• Operation - Cordless / battery powered

• Crimping force - 250 kN

• Crimping range - 16–630 mm²

• Crimping cycle - 5–8 seconds, depending on cable size

• Battery voltage - 18 V

• Battery capacity - 4.0 Ah

• Battery type - Li-ion

• Crimp profile - Hexagonal type

• Crimping function - Continuous crimping

• Net weight Approx. - 7.5 kg

• Gross package weight Approx. - 19.5 kg

• Carrying case - Plastic hard case

• Charger - Fast charger with LED display

• Batteries supplied - 2 pcs

• Die sizes - 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300, 400, 500 and 630 mm²

Typical applications

The JUPITER-630 is particularly suited to:

• Electrical cable lug crimping

• Large power-cable termination

• Copper conductor connections

• Aluminium conductor connections

• Distribution-panel wiring

• Transformer and switchgear installation

• Industrial electrical installations

• Utility and power-distribution work

• Infrastructure and construction projects

• Maintenance and field-service operations

• Repetitive large-cable termination

Its 16–630 mm² range and 250 kN force make it primarily a heavy-duty electrical termination tool rather than a general-purpose small-wire crimper.
