Jainson JUPITER-50X Battery-Powered Crimping Tool

The Jainson JUPITER-50X is a cordless, battery-powered vertical cold-press crimping tool designed for fast, consistent crimping of electrical terminals, connectors and end-sealing ferrules. It combines hydraulic/battery-powered operation with interchangeable dies, reducing the physical effort required compared with conventional hand crimpers.

Technical specifications

• Brand - Jainson

• Model - JUPITER-50X

• Tool type - Battery-powered crimping tool

• Operating principle - Vertical cold-press clamping

• Maximum output force - 16 kN

• Maximum crimping capacity - Up to 50 mm²

• Battery - 18 V, 2.0 Ah Li-ion

• Battery quantity - 2 pcs

• Approx. tool weight - 5.0 kg

• Dies supplied - 7 pcs

• Charger - 1 pc

• Carrying case - Plastic tool case

• Work-area lighting - LED

• Retract function - Automatic + manual retract

• Control - One-button operation

• Die monitoring - Electronic locking/full-closure monitoring

Crimping applications

The JUPITER-50X supports several terminal and ferrule applications:

• End-sealing ferrules: 0.5, 1, 1.5, 2.5, 4 and 6 mm²

• End-sealing ferrules: 6, 10 and 18 mm²

• End-sealing ferrules: 25, 35 and 50 mm²

• Non-insulated terminals: 1.5, 2.5, 8 and 10 mm²

• Open-barrel tab terminals: 0.5, 1, 1.5, 2.5, 4 and 6 mm²

• Insulated terminals: 1.5, 2.5 and 4–6 mm²

• Hexagonal crimping of non-insulated terminals: 1, 1.5, 2.5, 4, 6 and 10 mm².

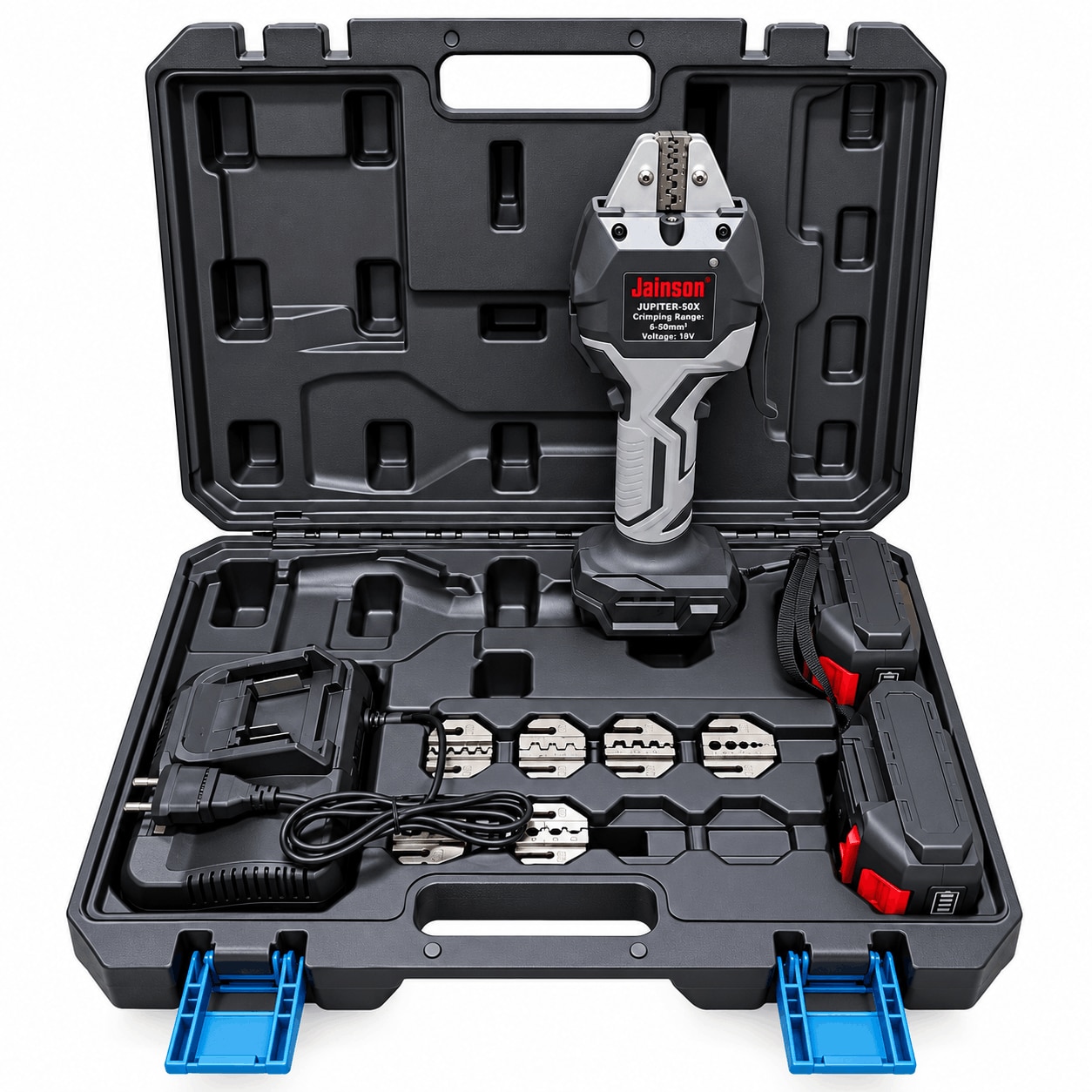

Kit contents

The standard package is specified as:

• JUPITER-50X crimping tool — 1 pc

• 18 V 2.0 Ah Li-ion battery — 2 pcs

• Battery charger — 1 pc

• Interchangeable crimping dies — 7 pcs

• Plastic carrying/storage case — 1 pc

Typical applications

The JUPITER-50X is suitable for electrical panel wiring, control-panel assembly, industrial electrical maintenance, cable termination, connector assembly, ferrule crimping and general electrical installation work where the supported terminal/ferrule sizes are required. Its principal advantage is repeatable powered crimping without the hand force required by conventional mechanical crimpers.
