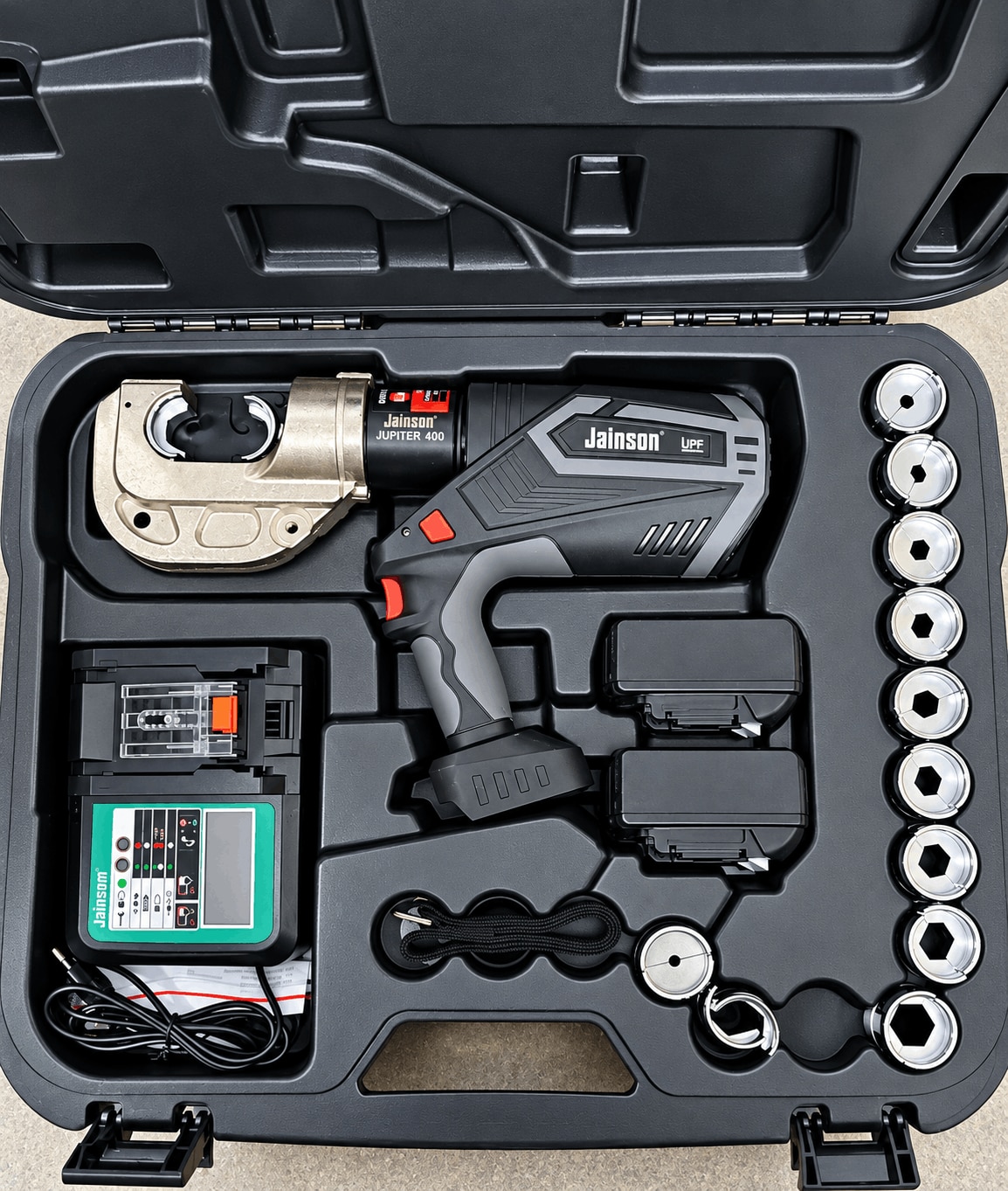

Jainson Battery Powered Crimping Tool - Jupiter 400

The Jainson JUPITER-400 is a professional battery-operated hydraulic compression crimping tool designed for heavy-duty crimping of electrical cable lugs and terminals. It is intended for large power cables and industrial electrical installation work, with a maximum rated crimping force of 120 kN and a published crimping range of 16–400 mm².

Technical specifications

• Brand - Jainson

• Model - JUPITER-400

• Tool type - Battery-powered automatic hydraulic crimping tool

• Crimping force - 120 kN

• Crimping range - 16–400 mm²

• Crimping cycle - 5–8 seconds, depending on cable size

• Operating voltage - 18 V

• Battery capacity - 4.0 Ah

• Battery quantity - 2 pcs

• Stroke - 42 mm — reported in earlier/current distributor specifications

• Crimp profile - Hexagonal

• Dies supplied - 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 and 400 mm²

• Charging - Fast charger with LED display

• Package - Heavy-duty plastic carrying case

• Approx. net weight - 7 kg

• Approx. gross kit weight - 15 kg

• Function - Continuous crimping

• Application - Large electrical cable lugs and terminals

Typical applications

• Power cable lug crimping

• Electrical terminal crimping

• LV/MV cable termination work, subject to the terminal manufacturer's specifications

• Distribution-panel wiring

• Transformer and switchgear cable termination

• Industrial electrical installations

• Power-distribution projects

• Electrical contractor field work

• Cable jointing and termination operations

The tool is particularly valuable where many large cable terminations have to be completed quickly and consistently.
