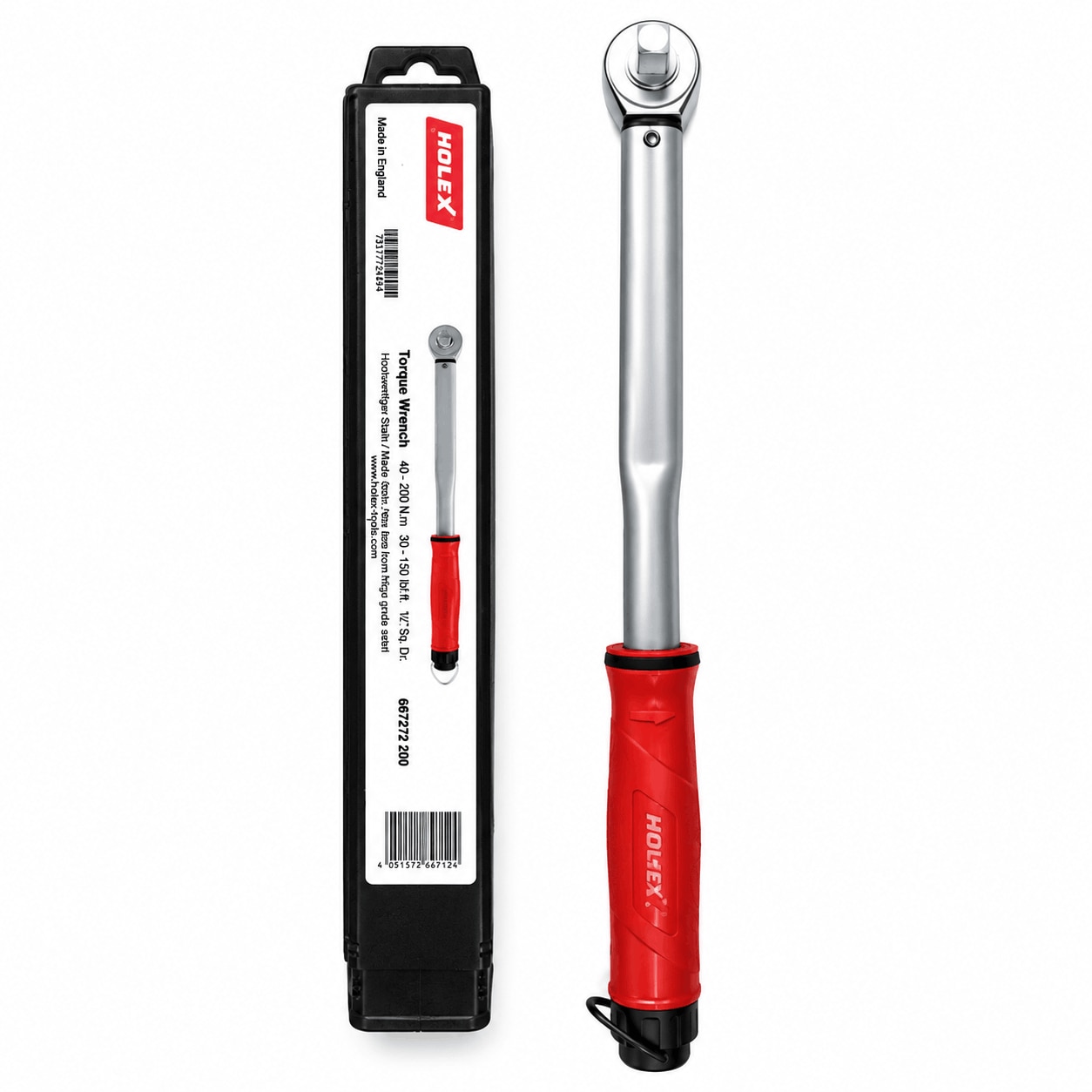

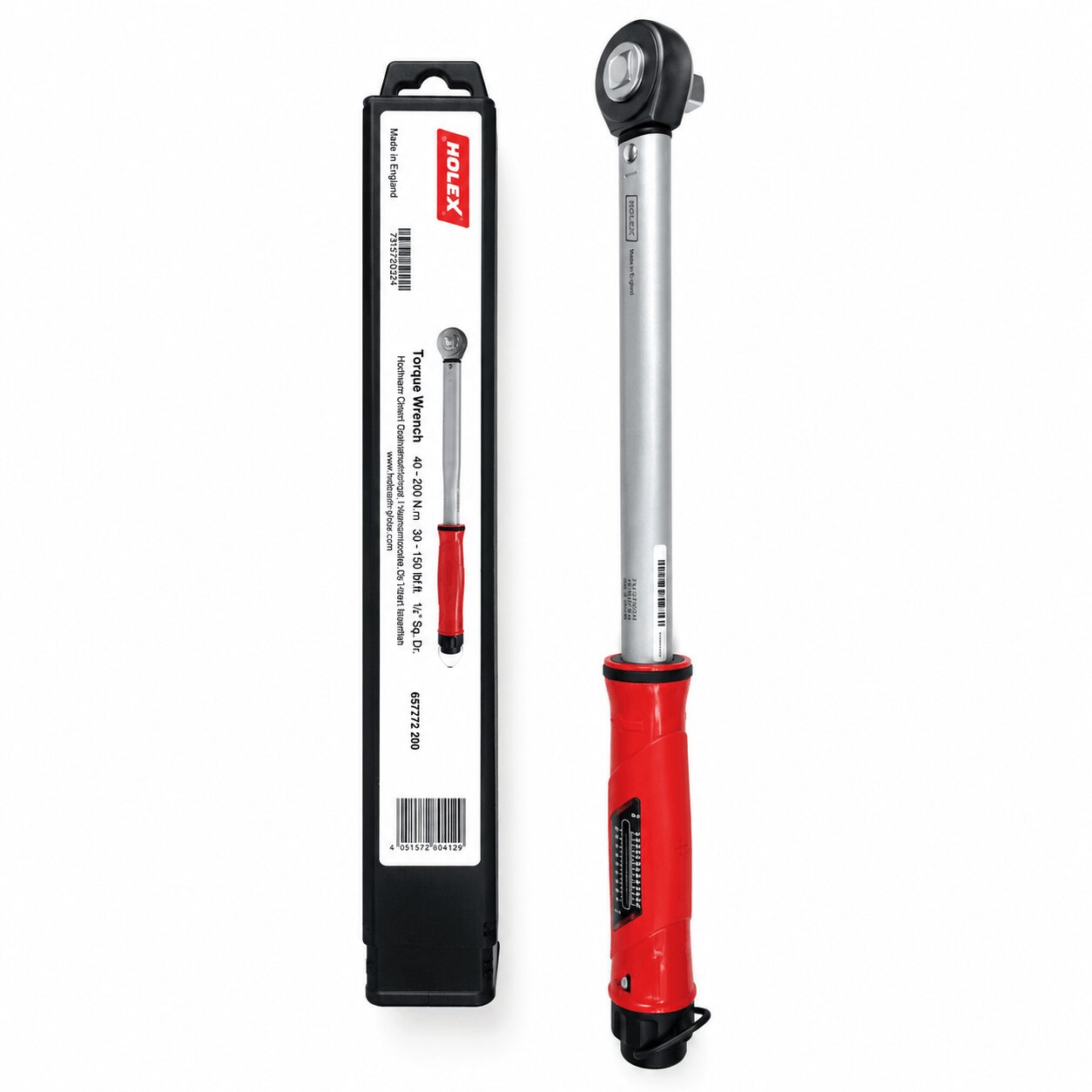

Holex Click Type Torque Wrench With Setting Scale

Holex Click Type Torque Wrench With Setting Scale

HOLEX torque wrenches are precision mechanical and electronic tools designed for controlled tightening of nuts and bolts. The mechanical models use an adjustable torque setting with a calibrated scale and provide an audible and tactile release when the preset torque is reached. HOLEX mechanical torque wrenches are specified according to DIN EN ISO 6789 and are supplied with a manufacturer's test/calibration certificate for applicable models.

Technical Details

• Function: On reaching the set torque value the wrench triggers giving a ″signal″ (audible and perceptible) and is then immediately ready for use again.

• Standard: Tested to DIN EN ISO 6789.

• Accuracy: ±3 % of the displayed value

• Article Number: 657272 “followed by maximum torque value (in Nm) for the specified model”. Example: Holex torque wrench with an article number “657272 20” is a torque wrench with maximum torque of 20Nm.

• Unit of measure for torque: Nm; lbf ft

• Scale Graduation: 0.1Nm

• Smallest Torque Range: 4-20 Nm

• Highest Torque Range: 200-1000 Nm

• Setting Scale: Window display

• Direction of tightening: Right

• Country of Origin: Germany

Application

• For controlled tightening of nuts and bolts.

• For both industrial and private use.
